3 In 1 Monoblock Liquid Filling Machine

Brand Name : OEM

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Supply Ability : 10 sets/month

Delivery Time : 40 working days after down payment

Packaging Details : Seaworthy Wooden Case

Payment Terms : T/T; L/C

Type : monoblock filling and capping machine

Material : Food grade stainless steel 304

Driven Type : Electric

Voltage : 380V 50Hz

Power : 6.68kw

Dimension(L*W*H) : 2450*1800*2200mm

Control system : PLC control

Filling capacity : 6000BPH(500ml)

Contact Now

3 In 1 Monoblock Liquid Filling Machine Easy Operate Apple Juice Filling Machine​

Features
Complete filling line with apple juice bottle making machine 3-in-1 monoblock
Standard 3-in-1 monoblock for PET bottles rinsing, hot filling and capping. It is applicable to fruit juice, tea beverage, functional beverage, etc with 2000-20000BPH capacity. According to the special production condition, another sterilizing rinsing module could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.
1. Full filling to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.
2. The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize
the complete CIP.

3. Sanitary filling head system is of umbrella structure, high filling speed.

4. Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted

5. Per fect filling temperature control system.
6. Reflux tank system has the function of supplying the material automatically.
7. Perfect CIP system.

Specifications

Complete filling line with apple juice bottle making machine 3-in-1 monoblock
1. CE,ISO,SGS certificate
2. 6000bph
3. juice filling line

4. juice making machine

Technique parameter

Productivity 6000BPH
Rinsing Head 18
Filling Head 18
Capping Head 6
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Gas Consumption 0.4 m3/min
Motor Power 6.68kW
Voltage 380V
Dimension (L×W×H) 2450*1800*2200mm
Weight 3000kg
Filling Principle Gravity Filling

Advantages

We offer professional turnkey project from design till done of the whole project.

1. Project consultation

2. Design

3. Factory building

4. Installation

5. Commissioning

6. Training


Product Tags:

monoblock filling and capping machine



automatic juice filling machine


Quality 3 In 1 Monoblock Liquid Filling Machine wholesale

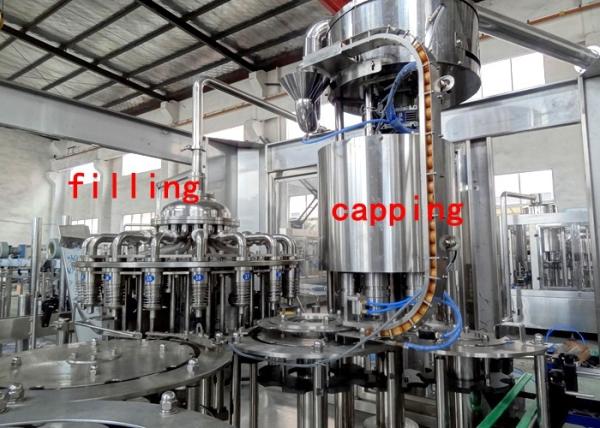

3 In 1 Monoblock Liquid Filling Machine Images
